Synthesis, Characterization, and Utilization of a Novel Phosphorus/Nitrogen-Containing Flame Retardant
作者：姜鵬，谷曉昱，張勝*，孫軍，吳申德，趙倩
關鍵字：THERMAL-DEGRADATION BEHAVIOR; POLY(LACTIC ACID); AMMONIUM POLYPHOSPHATE; EPOXY-RESINS; FIRE; COMPOSITES; POLYLACTIDE; POLYMERS; FLAMMABILITY; RESISTANCE
論文來源：期刊
具體來源：Ind. Eng. Chem. Res.
發表時間：2015年

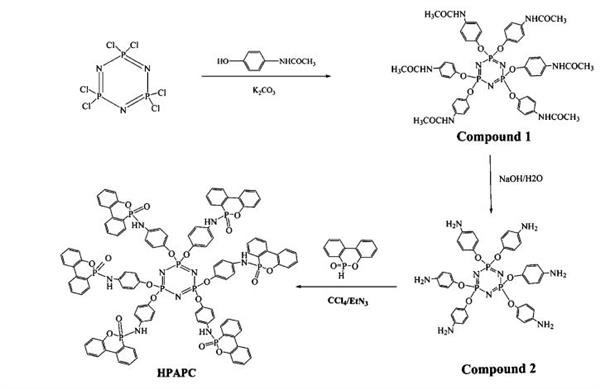

The novel phosphortis/nitrogen=zontainirig flame retardant hexa(phosphaphenarithrene aminophenoxyl)-cyclotriphosphatene (HPAPC), which contains Phosphaphenanthrene [9,10-dihydro-oxa-10,phosphaphenanthrene 10-oxide (DOPO)] and phosphazene (hekachlorocyclotriphosphazene) groups; was synthesized by the classic Atherton-Todd reaction, and its chemical structure was characterized by Fourier transform infrared (FTIR) and nuclear magnetic resonance (NMR) spectroscopies. Poly(lactic acid) (PLA) composites containing HPAPC were prepared by melt blending, and their fire performance and thermal behaviors were investigated in terms of limiting oxygen index (LOT); vertical burning (UL-94), dine calorimeter tests, and thermogravimetric analysis :(TGA). The LOT value could reach up to 347%, and UL 94 Could pass V-0 for the KA composite containing only 5 wt HPAPC, TGA results showed that the char formation of PIA could be significantly improved by the presence of HPAPC. The evolved gas of the Composite was analyzed by FTIR-TGA and pyrolysis gas chromatography/mass spectrometry (Py GC/IVIS). The dispersion of fillers in PLA was observed by:back-scattered electron (BSE). The Chat morphology was Characterized by FTIR Spectroscopy and scanning electronic microscopy (SEM). It was suggested that the ''''''''presence of HPAPC could release ammonia gas during combustion, which was beneficial to the formation of an intumescent Char structure.
